- Manufacturer: AmeriGlide
- Model Number: aavplc

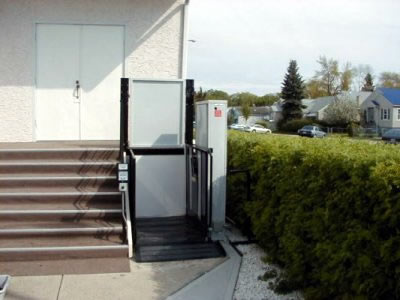

AmeriGlide Atlas Commercial Vertical Wheelchair Lift
AmeriGlide's Atlas Commercial Vertical Platform Lift offers the same great ease of configuration and high vertical lifting (up to 144") as the residential Atlas Tall Tower, but comes with a package of upgrades that make it ready for commercial use.
The commercial package helps you meet ADA rules and your local regulations by including the parts necessary for shaft installations. This includes two interlocks, a solid platform, an emergency light and alarm package, keyed remote call stations for the lower and upper landings, and an 18" fixed entry ramp.
The commercial package helps you meet ADA rules and your local regulations by including the parts necessary for shaft installations. This includes two interlocks, a solid platform, an emergency light and alarm package, keyed remote call stations for the lower and upper landings, and an 18" fixed entry ramp.
Product Resources
Product Specifications *
- Lifting Capacity: 550 lb
- Standard Lift Height: 96"
- Portable: No
- Arrives Assembled: No
- Maximum Lift Height: 144"
- Standard Drive System: Direct Worm-Gear & Screw-Nut
- Optional Drive System: None
- Battery Powered Option: Yes
- Constant Pressure Platform Controls: Yes
- Keyed Controls: Standard
- Keyed Call-Send Controls: Two Direction Toggle, Two Direction Toggle with Key
- Standard Platform Size: 34" x 54"
- Optional Platform Sizes: 40" x 54"
- Standard Platform Configuration: Straight-Thru Access
- Optional Platform Configurations: Adjacent Access
- Grab Rail: Optional
- Guard Panel: Standard
- Call-Send Controls: One Direction with Key x2
- Maximum Stops: 3
- Emergency Stop Platform Control: Standard
- Upper Landing Gate: Optional
- Alarm Button: Standard
- Platform Type: Solid
- Lower Access Ramp: 18" Fixed Toeplate
- Upper Access Ramp: None Available
* Specifications are subject to change.
