Dumbwaiter Lift | Residential Dumbwaiters | AmeriGlide Express Dumbwaiter

Call for
lowest prices
1 (800) 736-5067

  • Manufacturer: AmeriGlide
  • Model Number: EXPRESS
clear
Product Review
(0)
(4.6)

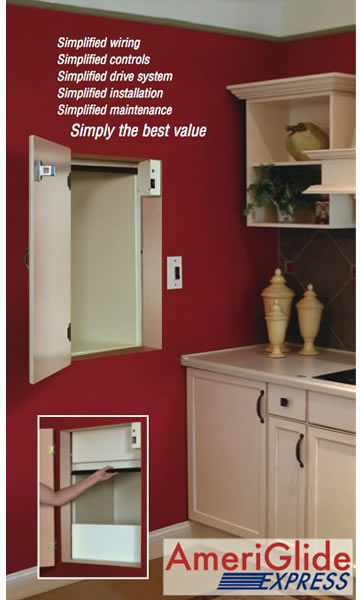

AmeriGlide Express Dumbwaiter
Normally
$5,500.00
4MS's Price
$3,679.00
Plus Shipping
Instant Coupons Available!
clear

Unlike other residential dumbwaiters, the AmeriGlide Express dumbwaiter lift uses a special drive train and track system that makes it very easy to install and economical to own. Typical dumbwaiters are built like mini-elevators with complex pulley systems, guide rails and traveling control cables. The AmeriGlide dumbwaiter lift comes from the factory with the entire drive system pre-installed on the underside of the car, and the car chassis/trolley system preinstalled on a section of the track. Installation isn't much more complicated than connecting sections of track, securing the drive cable to the header and wiring the controls and Interlocks. In many cases, a full day of installation time can be cut from the process. That's real savings!



The AmeriGlide Express' drive train system is actually borrowed from our line of stair lifts - a system that has been proven reliable over decades of use. Its benefits are many: The dumbwaiter rides on a single extruded aluminum track, eliminating the time and expense of assembling complex multi-channel rail systems. Wiring is greatly simplified because the cable-drum drive system is an integral part of the car. The bottom line is you get a reliable dumbwaiter that installs quickly - saving you significantly on the overall cost.


Product Specifications *
  • 20" wide x 20" deep x 30" high standard car
    (custom sizes available up to 30" x 30" x 36")
  • Durable ivory powder coated steel panel walls and doors
    (stainless steel available)
  • Car and drive system are factory installed on a section of track
  • Automatic, low voltage control switches
  • Low voltage hoistway door interlocks
  • Standard and final limit switches
  • Plug-in temporary bypass control to facilitate installation and maintenance

General Specifications:

  • Capacity - 100 lbs.
    • available up to 200 lbs.
  • Travel - Up to 32'
  • Track - Extruded aluminum
  • Stops - 2, 3, or 4
  • Speed - 20 feet per minute
  • Hoistway door interlocks - G.A.L. interlocks or electromechanical interlocks
  • Controls - 2 Call-Send controls, 24V
  • Cable - Aircraft cable rated at 1,800 lb. breaking strength
  • Motor - 1/3 hp, 90 VDC motor
  • Warranty - 2 year warranty on parts and 5 years on the drive train
  • Electric supply - 115 VAC grounded outlet
  • Designed to meet ANSI standards



* Specifications are subject to change.
