- Manufacturer: AmeriGlide
- Model Number: HERCULES

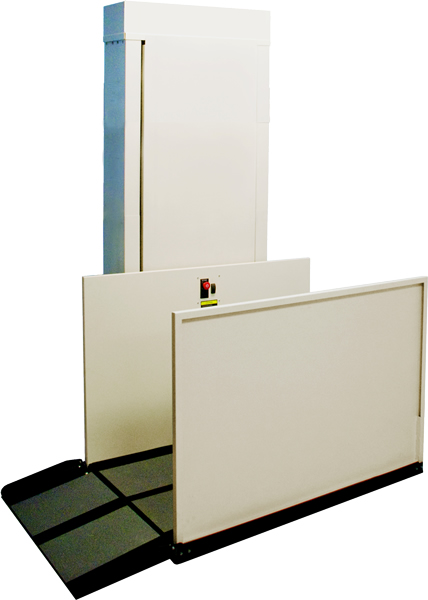

AmeriGlide Hercules Vertical Wheelchair Lift
The AmeriGlide Hercules porch lift gives you heavy-duty lifting. This is the perfect commercial wheelchair lift for schools, churches, and businesses.
Features of the Hercules include weather resistant controls, motor with screw drive, limit switches, a fixed ramp, solid side walls, solid platform, handrails, and paddle controls.
Meets ASME A18.1, Section 2 - "Vertical Platform Lifts" and CSA B44.1 / ASME 17.5 - "Elevator and Escalator Electrical Equipment" safety standards.
Product Resources
Product Specifications *
- Lifting Capacity: 750 lb
- Standard Lift Height: 53"
- Portable: No
- Arrives Assembled: No
- Maximum Lift Height: 171"
- Standard Drive System: Acme Screw Drive with Backup Nut
- Optional Drive System: None Available
- Battery Powered Option: Yes
- Constant Pressure Platform Controls: Yes
- Keyed Controls: Optional
- Keyed Call-Send Controls: Call-Send
- Standard Platform Size: 36" x 54" Platform (34" Usable Width)
- Optional Platform Sizes: 36" x 60" (34" Usable Width), 42" x 60" (40" Usable Width)
- Standard Platform Configuration: Straight-Thru Access
- Optional Platform Configurations: Same Side Entry-Exit, Adjacent Access
- Grab Rail: Standard
- Guard Panel: Standard
- Call-Send Controls: Optional
- Maximum Stops: 3
- Emergency Stop Platform Control: Optional
- Upper Landing Gate: Optional
- Alarm Button: Optional
- Platform Type: Solid with Non-Skid Coating
- Lower Access Ramp: Fixed, Optional Automatic
- Upper Access Ramp: None Available
- Lift Speed (FPM): 10
* Specifications are subject to change.
