- Manufacturer: AmeriGlide
- Model Number: HERCULES JR

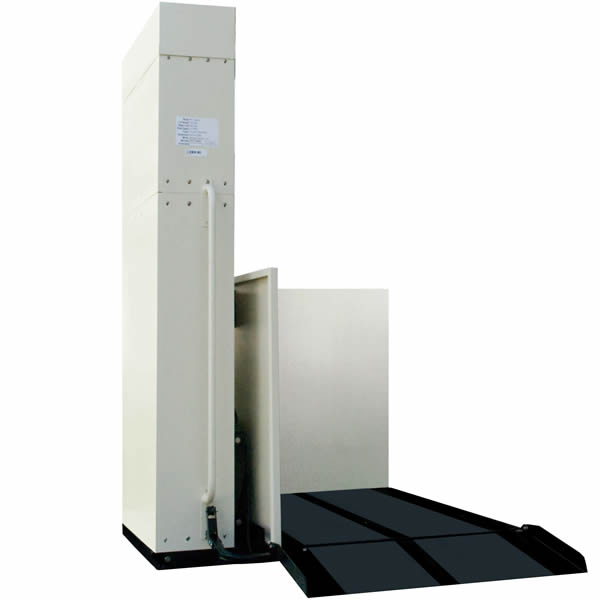

AmeriGlide Hercules JR Vertical Wheelchair Lift
The AmeriGlide Hercules JR porch lift is an economical way to add a robust porch lift to your home. The Hercules JR requires some assembly, but once assembled all you have to do is move it in place and secure it. And because it is weatherized, it can be used inside or outside.
Features of the Hercules JR include weather resistant controls, motor with screw drive, limit switches, solid platform, automatic folding ramp, and safety pan.
Meets ASME A18.1, Section 5 - "Private Residence Vertical Platform Lifts" and CSA B44.1 / ASME 17.5 - "Elevator and Escalator Electrical Equipment" safety standards.
Product Resources
Product Specifications *
- Lifting Capacity: 600 lb
- Standard Lift Height: 53"
- Portable: No
- Arrives Assembled: No
- Maximum Lift Height: 77"
- Standard Drive System: Acme Screw Drive with Backup Nut
- Optional Drive System: None Available
- Battery Powered Option: Yes
- Constant Pressure Platform Controls: Yes
- Keyed Controls: None Available
- Keyed Call-Send Controls: Call-Send
- Standard Platform Size: 36" x 54" Platform (34" Usable Width)
- Optional Platform Sizes: None
- Standard Platform Configuration: Straight-Thru Access
- Optional Platform Configurations: None Available
- Grab Rail: None Available
- Guard Panel: Standard
- Call-Send Controls: Optional
- Maximum Stops: 2
- Emergency Stop Platform Control: None Available
- Upper Landing Gate: Optional
- Alarm Button: None Available
- Platform Type: Solid
- Lower Access Ramp: Automatic Folding
- Upper Access Ramp: None Available
- Lift Speed (FPM): 10
* Specifications are subject to change.
Product Reviews
| 1 review | ||
|
|
|
0 |
|---|---|---|
|
|
|
0 |
|
|
|
1 |
|
|
|
0 |
|
|
|
0 |
Sort by
cool w/issues |
|
|
Feb 6, 2010 4:16 AM
|
|
|---|---|
| da_kine from Chester Ca. would recommend this to a friend. | |
| A Little About Myself | paraplegic |
| Pros | Sturdy |
| Cons | Dont work wno power, Unsafe |
| there is no way to use it alone when power goes out if your alone | |
|
4 Medical Supplies replies:
Thank you for your review. As mentioned, the manual crank backup requires a 2nd person to operate. If one-person operation during power outages is a priority, the Hercules can be ordered with a "DC Powered" upgrade and batteries. These options allow for operation during power outages.
|
|
