Hercules II 750 Commercial Vertical Wheelchair Lift | Vertical Platform lifts

Porch & Elevator
Lifts Direct Line
1 (800) 736-0183
Our lift experts are waiting to answer your questions and offer you great deals.
Call us now at 1 (800) 736-0183.
  • Manufacturer: AmeriGlide
  • Model Number: HERC 750 Commercial
Product Review

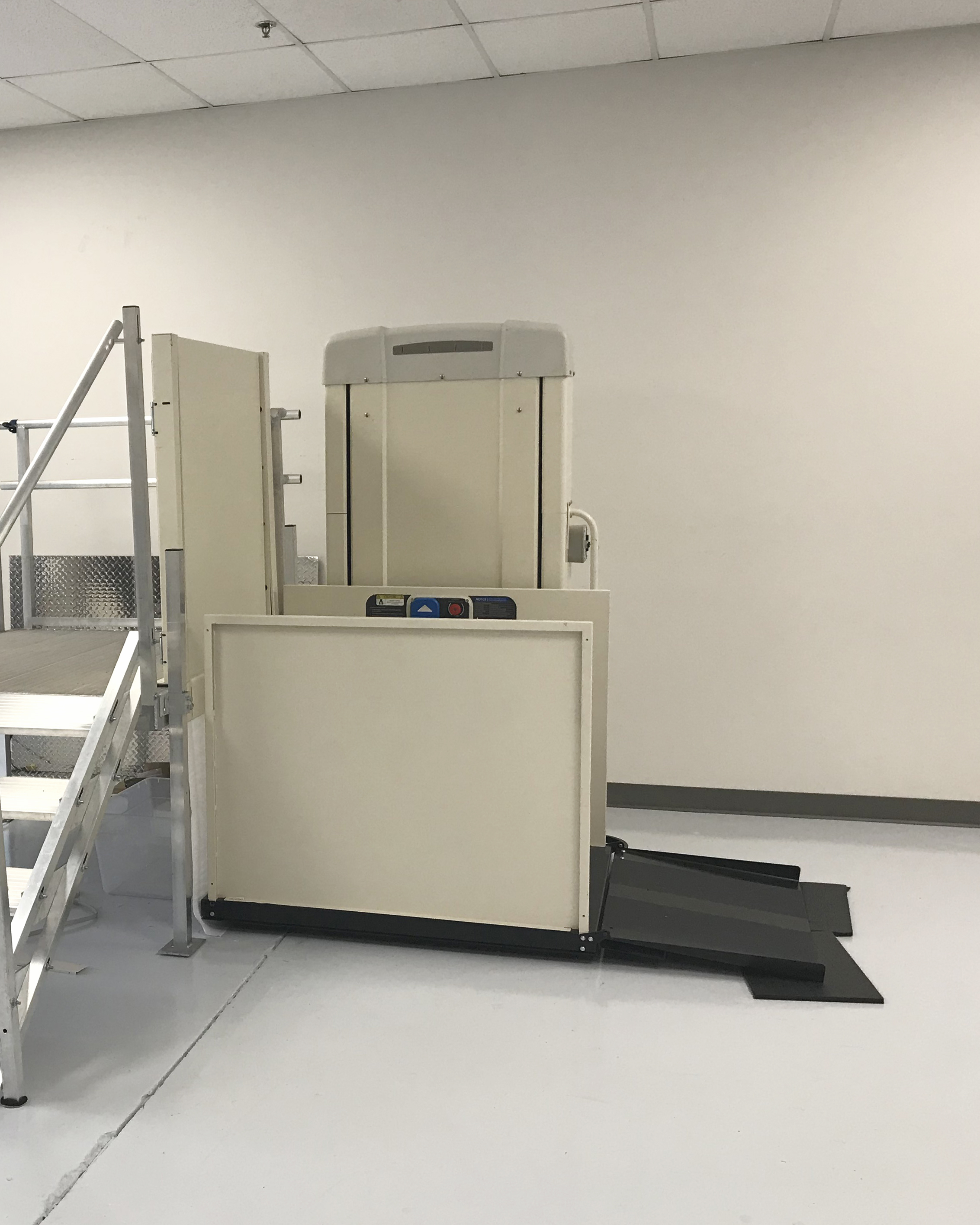

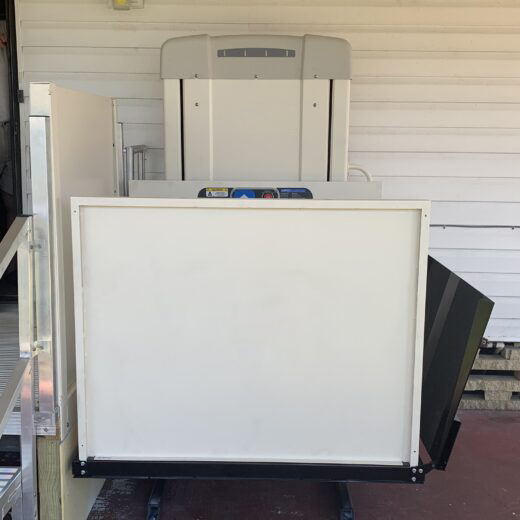

AmeriGlide Hercules II AC 750 Commercial
4MS's Price
Plus Shipping
Special Offers Available!

Making a business or office location wheelchair-accessible can be a daunting prospect. AmeriGlide makes it easy. When you choose a Hercules II 750 Commercial Vertical platform Lift for your accessibility upgrade, you get a standard commercial setup package to help you satisfy code requirements with minimal hassle. Need additional features or custom options to better suit your clients, customers, and employees? No problem! Just contact one of our accessibility specialists for more details!


  • 750-lb. capacity
  • Solid handrails and solid non-skid lift platform (36" x 54")
  • Safety plate included on lift platform
  • Constant pressure controls give user total control over lift
  • Weather-resistant switches and controls
  • Top limit switch lets you set the stop-height wherever you want it, up to 171 inches!
  • Bottom limit switch also included
  • 42-inch high solid side platform walls for added safety
  • Some assembly is required
  • ASME A18.1, Section 2 - "Vertical Platform Lifts" compliant when properly configured
  • CSA B44.1 / ASME 17.5 - "Elevator and Escalator Electrical Equipment" compliant when properly configured
Product Specifications *
  • Lifting Capacity: 750 lb
  • Standard Lift Height: 53"
  • Arrives Assembled: No
  • Maximum Lift Height: 171"
  • Standard Drive System: Ball Screw Drive
  • Optional Drive System: None Available
  • Battery Powered Option: Yes
  • Constant Pressure Platform Controls: Yes
  • Keyed Controls: Optional
  • Keyed Call-Send Controls: Keyed, Wireless
  • Standard Platform Size: 36" x 54" (34" Usable Width)
  • Optional Platform Sizes: 36" x 60" (34" Usable), 42"x 54" (34" Usable), 42" x 60" (40" Usable)
  • Standard Platform Configuration: Straight-Thru Access
  • Optional Platform Configurations: Same Side Entry-Exit, 90 Degree Adjacent Access
  • Grab Rail: Included
  • Guard Panel: 42"
  • Call-Send Controls: (2) Non-Keyed
  • Maximum Stops: 3
  • Emergency Stop Platform Control: Included
  • Upper Landing Gate: Optional
  • Alarm Button: Included, Optional Lighted Button
  • Platform Type: Solid with Non-Skid Coating
  • Lower Access Ramp: Fixed, Optional Automatic
  • Upper Access Ramp: None Available
  • Lift Speed (FPM): 10
  • Portable: Optional
  • Other Options: Fire-Rated Doors, Automatic Door Openers
* Specifications are subject to change.
