- Manufacturer: US Medical
- Model Number: MER-E603

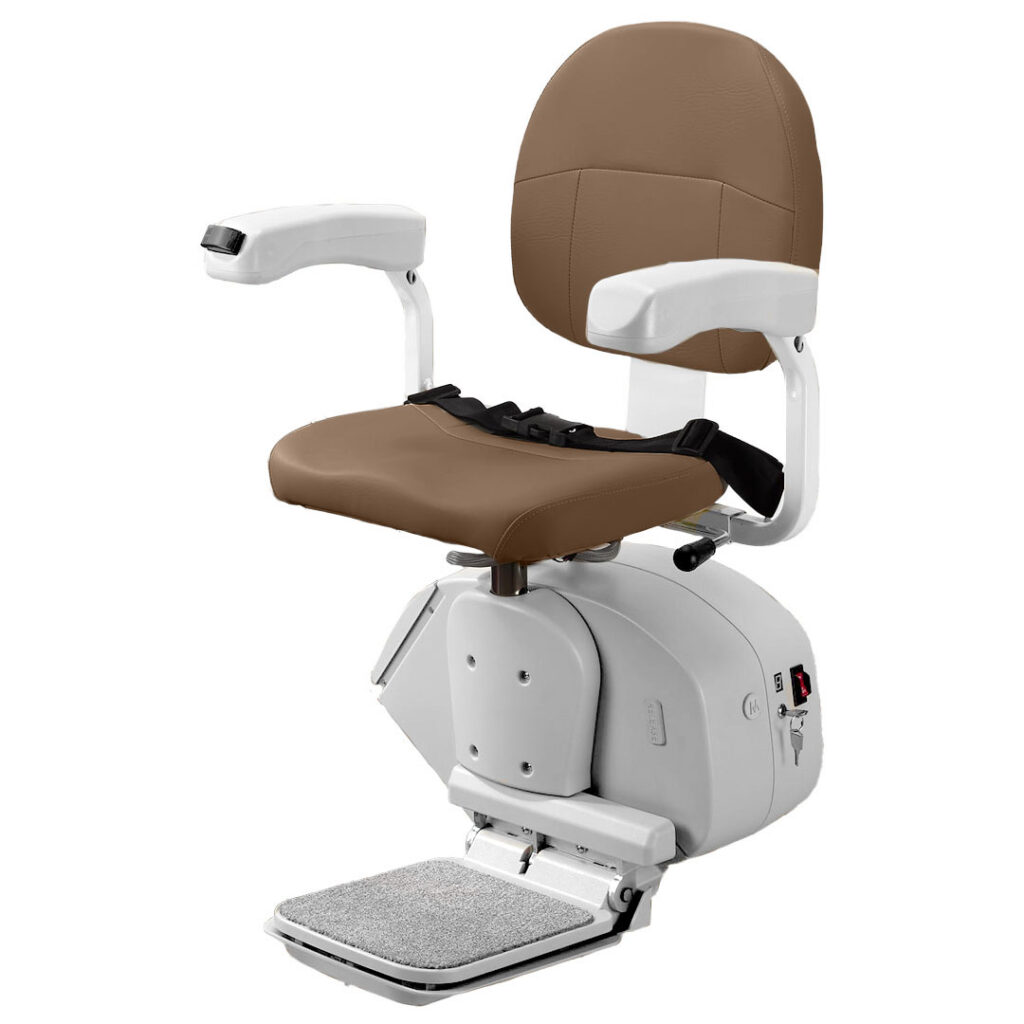

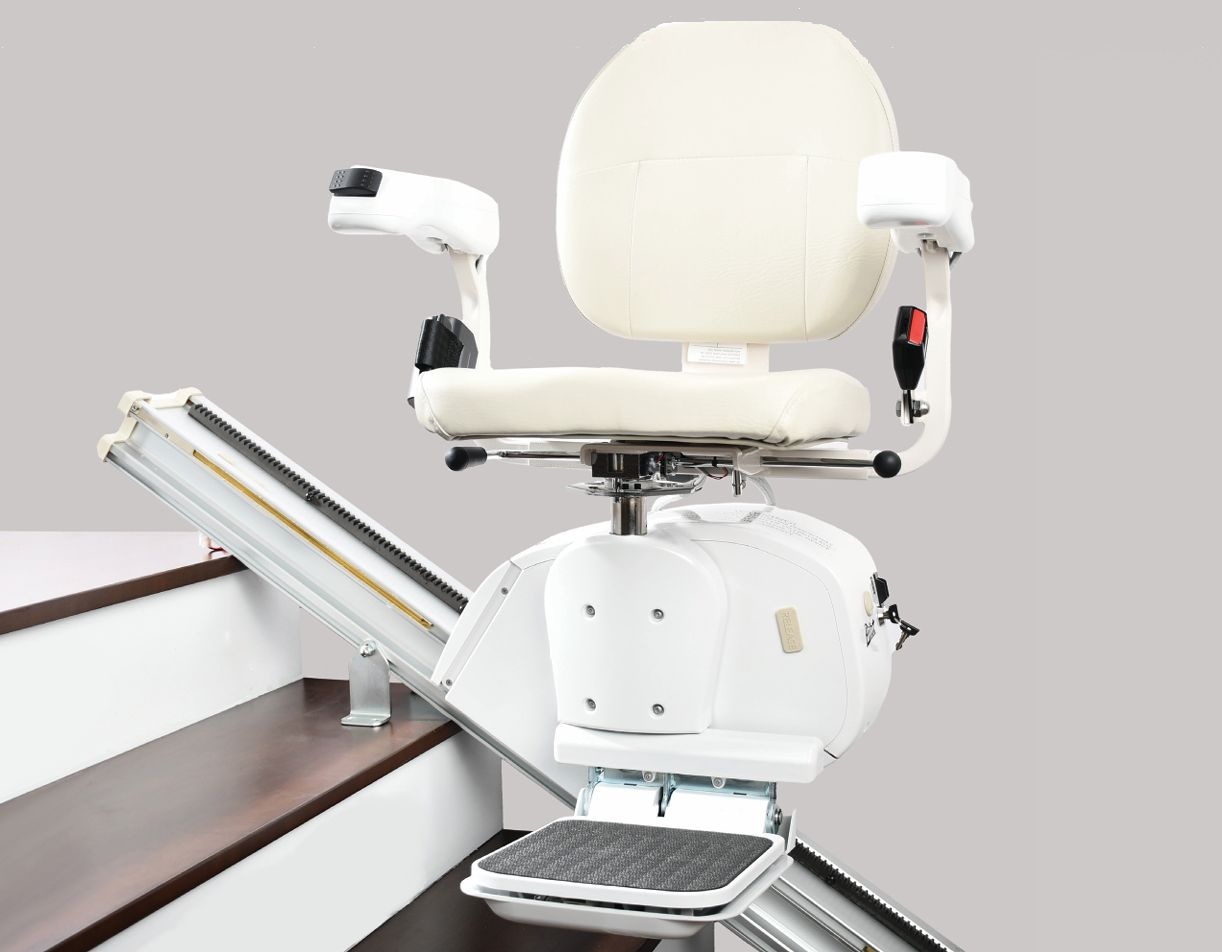

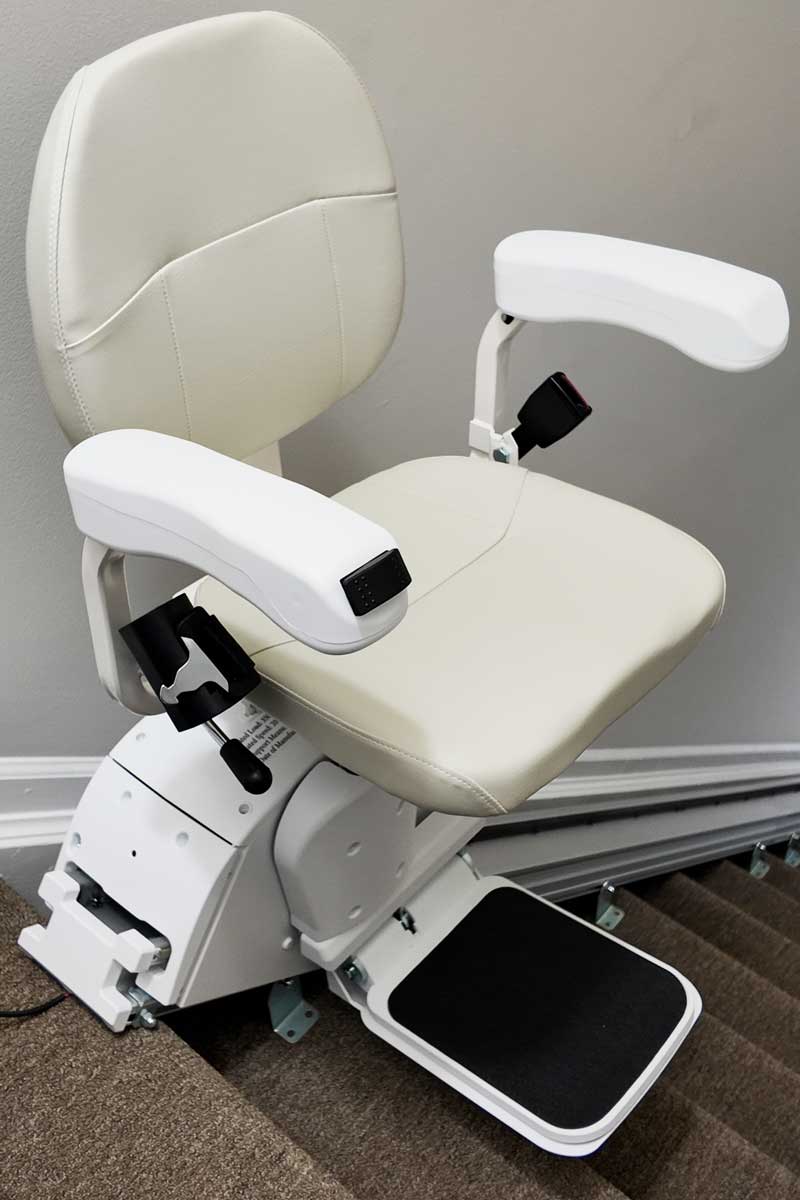

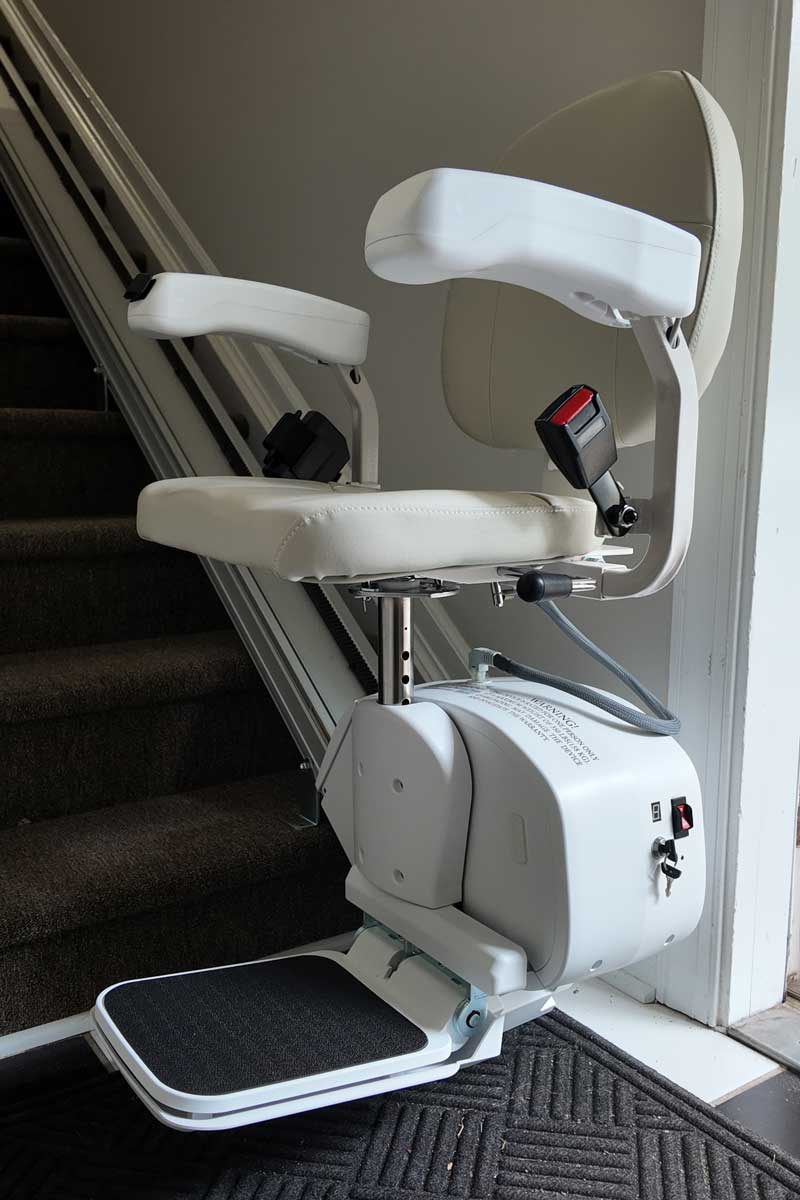

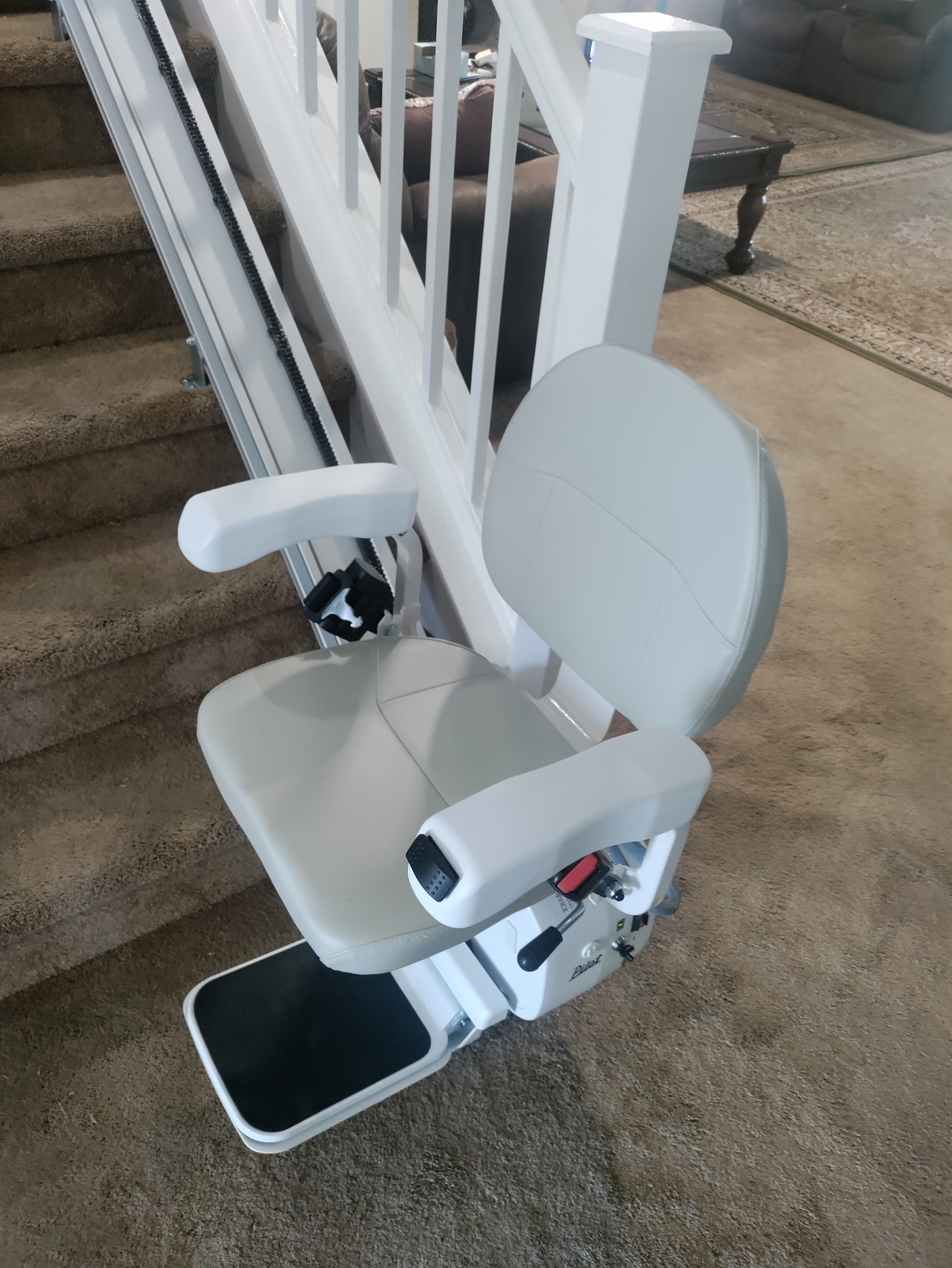

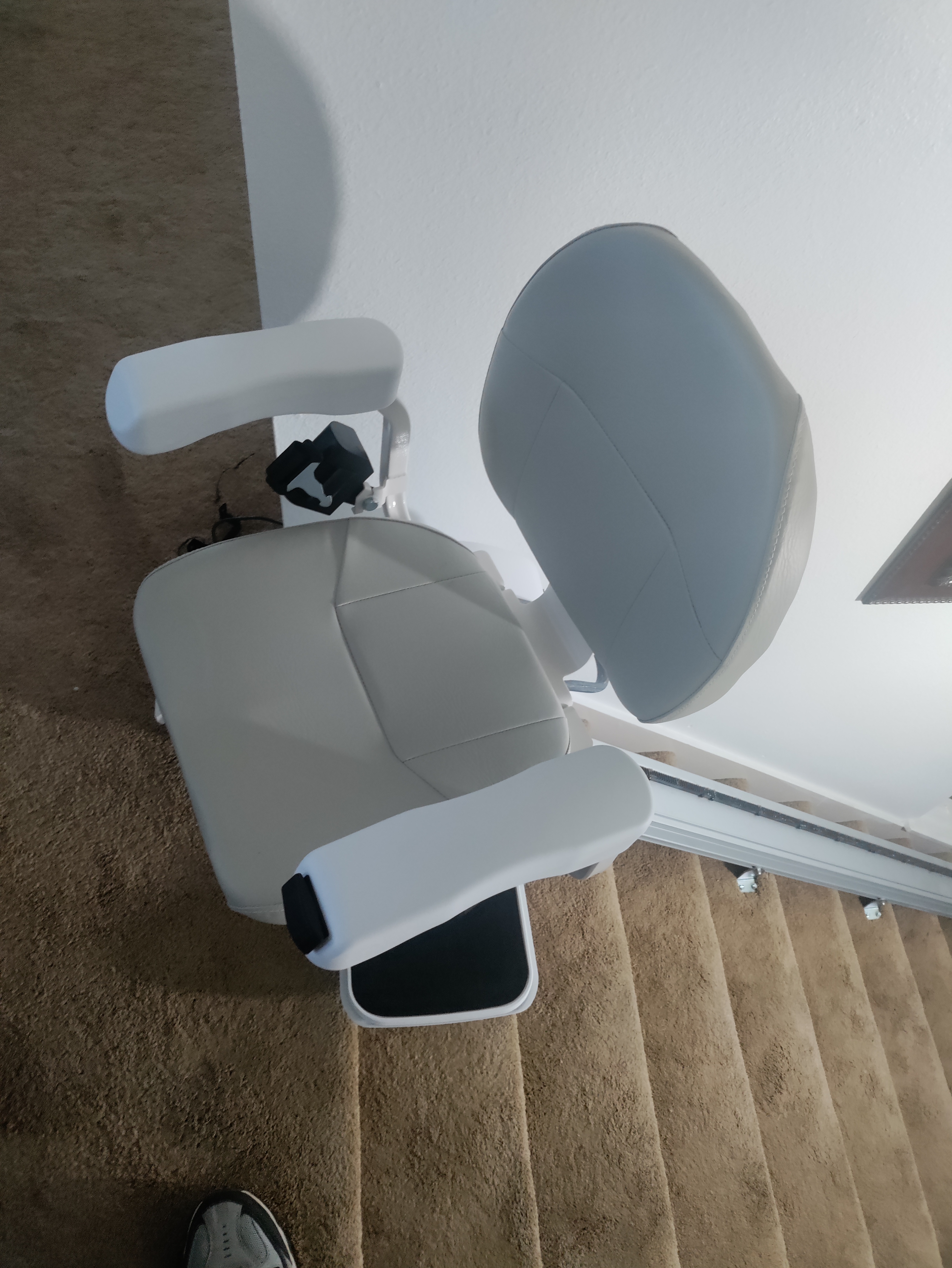

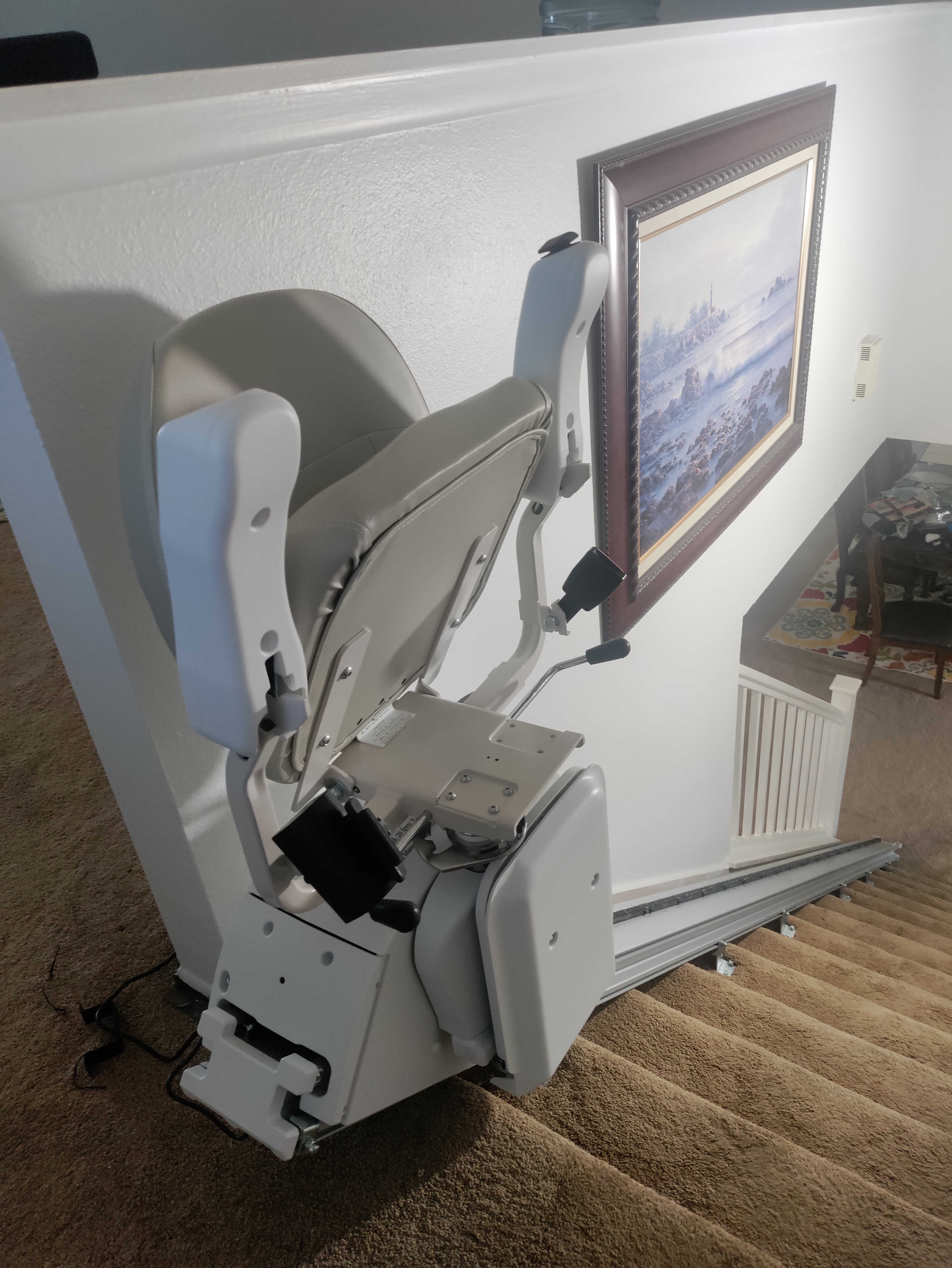

Crest HD - Stair Lift
The Crest HD Stair Lift delivers exceptional versatility, heavy-duty performance, and advanced safety features. With a 350 lb. weight capacity, its universal design supports both left and right-side installation, while adjustable armrest width, seat height, and toggle control offer customizable comfort. A 2-position swivel seat ensures safe and easy transfers.
Functionality is enhanced with extra-long charging stations and 9Ah batteries, capable of lasting up to 20 days in power-saving sleep mode during outages. Maintenance is streamlined with a battery test point, diagnostic display, and easy-access service panels.
Robust safety features include:
Note: Capacity is derated to 300lbs if installed at 46 to 55 degree angle or adding the hinged rail option.
Functionality is enhanced with extra-long charging stations and 9Ah batteries, capable of lasting up to 20 days in power-saving sleep mode during outages. Maintenance is streamlined with a battery test point, diagnostic display, and easy-access service panels.
Robust safety features include:
- 5 directional safety sensors
- Retractable seat belt
- Armrest and seat position sensors
- Over-speed governor
- Electro-mechanical brake system
- Key switch for controlled access
Note: Capacity is derated to 300lbs if installed at 46 to 55 degree angle or adding the hinged rail option.
* Connecticut, Michigan and Washington residents: Please check your local code requirements to ensure proper compliance.
Product Specifications *
- Drive Type: Rack and Pinion
- Battery Powered: Yes
- Self Installable: Yes
- Basic Installation Included: No
- Standard Capacity: 350 lb
- Max Track Length, Standard: 16'
- Max Track Length, Optional: 32'
- Rail Angle, Min: 25°
- Rail Angle, Max: 55°
- Swivel Seat: Yes
- Swivel Seat Rotation: 90 Degrees at top landing
- Flip-Up Seat: Yes
- Flip-Up Armrests: Yes
- Constant Pressure Controls: Yes
- Footrest Safety Sensor: Yes
- Seat Width, Min: 16"
- Seat Width, Max: 20"
- Seat Depth: 16.36"
- Unit Footprint, In Use: 23"
- Unit Footprint, Parked: 13"
- Call Stations Included: 2 Wireless
- Digital Diagnostics Display: Yes
- Key Lock: Yes
* Specifications are subject to change.
