- Manufacturer: AmeriGlide
- Model Number: VPL[400,600,800,1000,1200,1400]

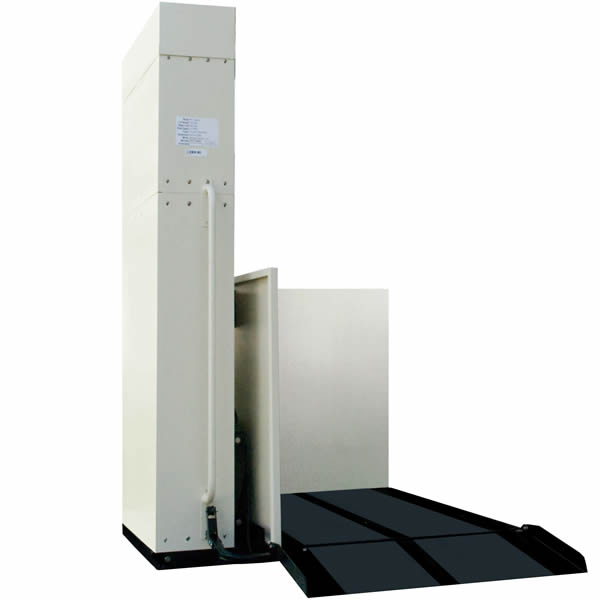

Stratos 600 AC Residential
The Stratos VPL represents a new generation and evolution in VPL's. New technologies introduced in the Stratos VPL make this VPL series more reliable, easier to use, easier to service, easier to troubleshoot, and the premiere market choice for platform lift solutions.
Innovation is at the heart of this next generation Vertical Platform Lift. The Stratos VPL is an outstanding choice for vertical lifting solutions in the home or in light commercial settings where an elevator is impractical or unnecessary.
Features:
Innovation is at the heart of this next generation Vertical Platform Lift. The Stratos VPL is an outstanding choice for vertical lifting solutions in the home or in light commercial settings where an elevator is impractical or unnecessary.
Features:
- Guardian System: 4 bright, high-contrast LED status lights give continual performance feedback from the lift's control board. Monitoring almost every critical system, Guardian can provide immediate feedback and guidance.
- SteadyDrive: Ensures a smooth, quiet and stable lift.
- ReadyUPS System: True battery back-up option that can deliver at least 5-cycles in the event of power loss.
Product Resources
Product Specifications *
- Lifting Capacity: 750 lb
- Standard Lift Height: 53"
- Arrives Assembled: Yes
- Maximum Lift Height: 171"
- Standard Drive System: 1" Diameter Acme Screw Drive
- Optional Drive System: None Available
- Battery Powered Option: Yes
- Constant Pressure Platform Controls: Yes
- Keyed Controls: Optional
- Keyed Call-Send Controls: Keyed and/or Wireless
- Standard Platform Size: 36" x 48" (34" Usable Width)
- Optional Platform Sizes: 36" x 60" (34" Usable), 42"x 54" (34" Usable), 42" x 60" (40" Usable)
- Standard Platform Configuration: Straight-Thru Access
- Optional Platform Configurations: Same Side Entry-Exit, 90 Degree Adjacent Access
- Grab Rail: Included
- Guard Panel: 36", Optional 42"
- Call-Send Controls: One Per Stop Included
- Maximum Stops: 3
- Emergency Stop Platform Control: Included
- Upper Landing Gate: Optional
- Alarm Button: Optional
- Platform Type: Solid with Non-Skid Coating
- Lower Access Ramp: 36" Fixed or Auto-Folding Standard, Optional 42" Fixed or Auto-Folding
- Upper Access Ramp: None Available
- Lift Speed (FPM): 10
- Portable: None Available
- Other Options: Fire-Rated Doors, Automatic Door Openers
* Specifications are subject to change.
Product Reviews
3 | ||
1 | ||
1 | ||
1 | ||
0 | ||
0 |
Sort by
![]() | |
Jan 31, 2013 8:00 AM | |
---|---|
I'm the Contractor from charleston, wv would recommend this to a friend. | |
A Little About Myself | General contractor |
Pros | |
Cons | |
Great product & well built. This is the 3rd unit we have purchased from 4 Med Supplies. | |
Good Product. Fairly easy to install. | |
Jun 16, 2011 9:19 AM | |
---|---|
Handy Randy from Middle River, MD would recommend this to a friend. | |
A Little About Myself | Do-it-Yourselfer |
Pros | Nice, sturdy wheelchair lift that works as designed. My son definitely feels safe in it. |
Cons | Assembly instructions are very bad. They are not clear at all and I had to perform trial-and-error to finally get it together. It makes an electrical buzzing noise, that is very annoying. There are some minor damages that are not the result of delivery, but manufacturing. |
Service & Delivery | Order and Delivery was fine, I had no problems. I did though, have to try a few times to get a response to questions, after delivery. |
Pretty easy to assemble once we could figure out the directions. Got to get better directions. Once installed, we loved the lift, it works great. | |
![]() | |
Feb 6, 2010 4:16 AM | |
---|---|
Da_Kline from Chester Ca. would recommend this to a friend. | |
A Little About Myself | Paraplegic |
Pros | Sturdy |
Cons | This vertical lift does not work without power. It's very unsafe and a bit dangerous. |
There is no way to use it, if the power goes out. | |
4 Medical Supplies replies:
Thank you for your review. As mentioned, the manual crank backup requires a 2nd person to operate. If one-person operation during power outages is a priority, the Hercules can be ordered with a "DC Powered" upgrade and batteries. These options allow for operation during power outages. | |
10 of 10 people found this review helpful |
